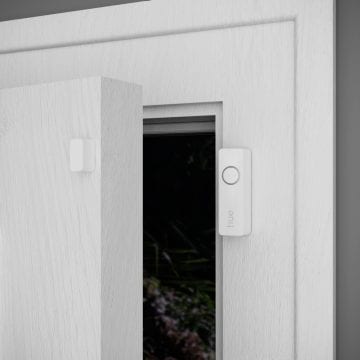

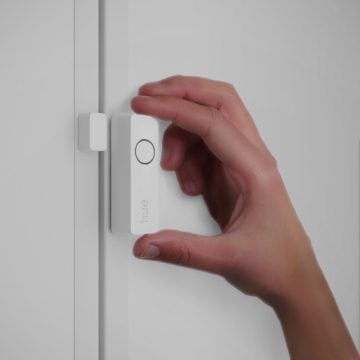

Attach the Secure contact sensor to almost any door or window frame using screws (not included) or the adhesive backing. You can even mount it on other surfaces, such as a safe or cabinet.
Place it anywhere
Easy to set up
Thanks to its design, you can place the magnet on either side (or on top!) of the sensor. Once in place, set up in the Hue app is simple — just add and customize it any way you like.

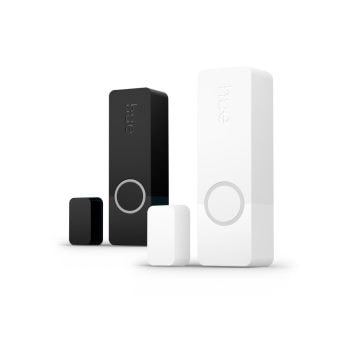

Available in black or white
Like every Philips Hue product, the Secure contact sensor was designed with style in mind. Its sleek look blends in with any home decor and comes in your choice of black or white.
Questions & answers
How do I mount the Secure contact sensor?
Mount the sensor using the included adhesive. Peel off the backing and stick it to a flat surface.
How should I position my Secure contact sensor?
For the best results, place the magnet (the smaller part) on the part that moves, such as a door. Place the sensor itself on the part that doesn't move, such as a door frame. Make sure both parts of the sensor are out of reach of children.
The magnet can be placed to the left, right, or on top of the sensor, but it should always face the glossy section. Try to avoid steel surfaces and strong magnets, such as those found in speakers, as they can affect the sensor's performance. Finally, make sure there's enough space to easily replace the battery in the sensor if necessary.
Can I use the Secure contact sensor outdoors?
The Secure contact sensor is designed for indoor use only.
Can I use the Secure contact sensor on any type of window?
The Secure contact sensor was designed for flexible and easy installation on almost any window frame. However, we don't recommend installing it on steel or magnetic surfaces because they can affect the sensor's performance. Be sure to test the setup on your window frame before installation.
Is a Bridge required to use the Secure contact sensor?
Yes. A Secure contact sensor does not work in a Bluetooth-controlled Philips Hue setup.
What kind of battery does the Secure contact sensor use?
The Secure contact sensor uses a replaceable CR2 battery.
Can't find an answer?
Please visit our Philips Hue Secure support section to learn how to get more help.
Specifications
- Design and finishing
Housing Material
Plastic
- Extra feature/accessory incl.
Upgradeable with Philips HUE bridge
Yes
- Packaging dimensions and weight
EAN/UPC - product
046677580957
Net weight
0.03 kg
Gross weight
0.11 kg
Height
140 mm
Length
72 mm
Width
72 mm
Material number (12NC)
929003563801
- Service
Warranty
2 year(s)
- The contact sensor
Height
2.8 inch
Width
0.9 inch
Depth
0.8 inch
Mounting distance between sensor and magnet
0.8 inch
Mounting options
Adhesive tape
Screws (not included)
IP rating
20
Battery lifetime
2 year(s)
Battery type
CR2
Weight sensor
0.06 lb
Weight magnet
0.013 lb
Color
Black
Operating temperature
-20°C to 45°C
Protection class
Class III
Placement
Door
Window
Connection protocol
Zigbee
- What's supported
Philips Hue App
Android 10.0 and above
iOS 16 or later
Compatible with Hue Secure
Yes
- Other
User manual
No manual available
Disposal of the product
At the end of (economic) life dispose the product according to local rules and do not dispose the product with regular household waste. The correct disposal of your product will help prevent potential negative consequences for the environment and human health
Dismantling
No dismantle information available
